Smart Parking System

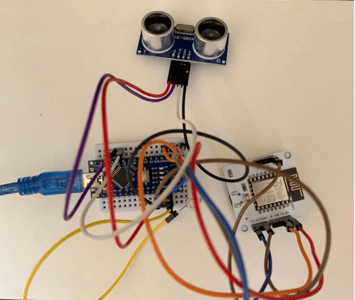

Cover Image

PROBLEM:

● Difficult to find an empty spot in a large, multi-storey parking lot
● Number of empty parking spaces is not known
● People have to go around the complete parking lot finding a free spot
● Time is wasted
● Manual assistance is needed

SOLUTION:

● Automated IoT based system
● Uses Bolt Cloud
● Database is updated every 10 second
● UI displays number of empty parking spaces on each floor
● LED in each parking spot to indicate empty/occupied spots

Things used in this project:

Hardware Components:

Bolt Wifi Module X 1
Arduino Nano X 1
Ultrasonic Sensor X1
Jumper Wires

x10(6 male-male,

6 male-female)

LED(included with Bolt IoT training kit) x1
Resistor(10 kΩ) x1
Bread Board x1

Software and online services:

Bolt Cloud
Python IDE
Arduino IDE
SQLite
Vue JS
Flask

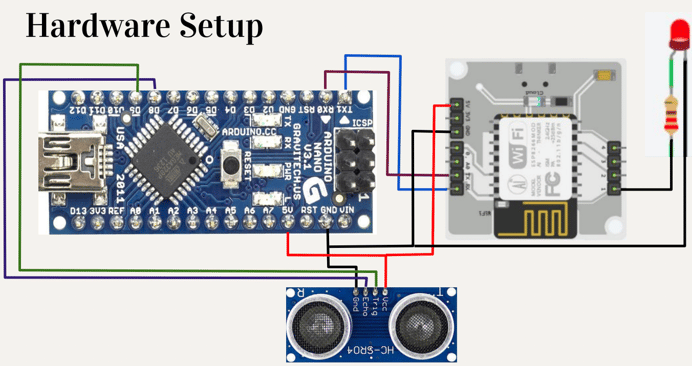

Hardware Setup:Hardware Setup

Software Programming:

Code: https://github.com/MiSayali/Smart-Parking-System

Basic Working:

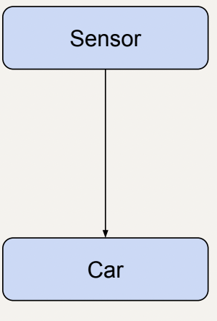

● Detecting empty parking spot Basic Working
● Indicating empty parking spot
● Display total number of empty
parking spots

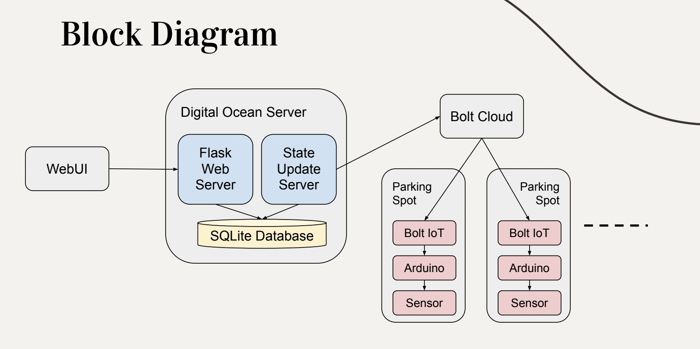

Block Diagram:

Block Diagram

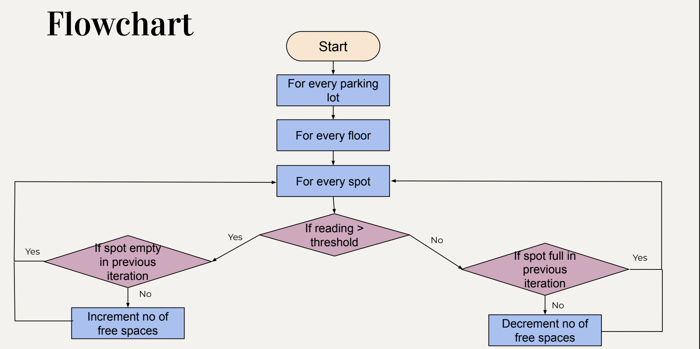

Flowchart:

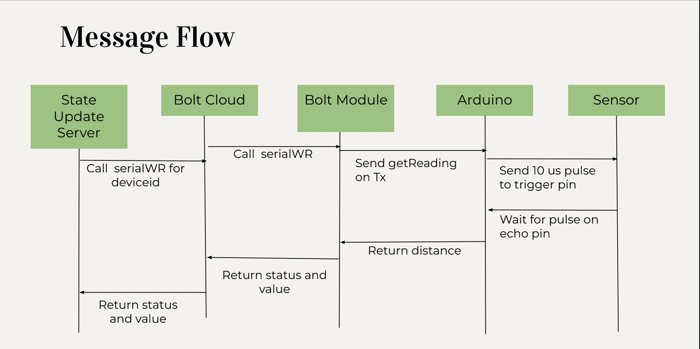

FlowchartMessage Flow:

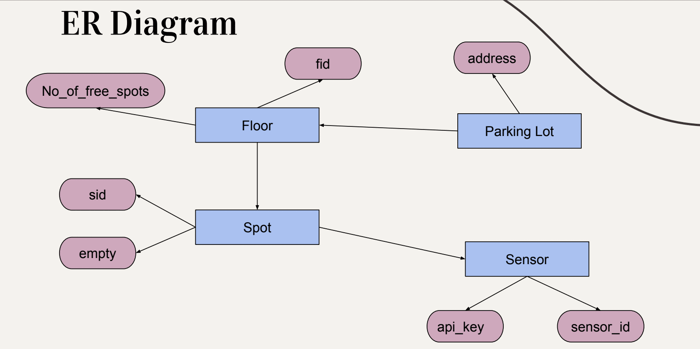

Message FlowER Diagram:

ER Diagram



OUTPUT:

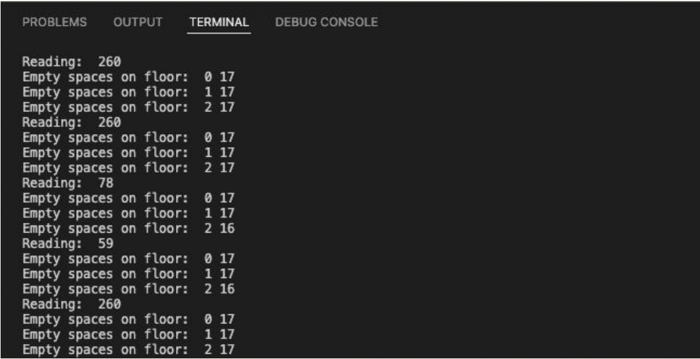

Debug Log Output:

Debug Log Output

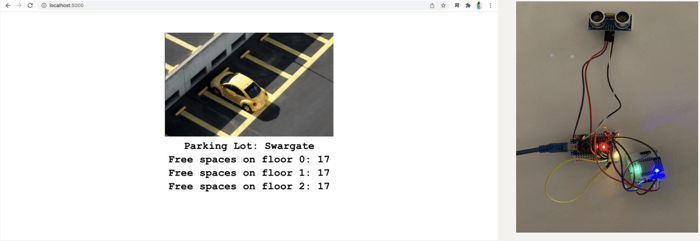

Output - Spot is empty:

Output - Spot is empty

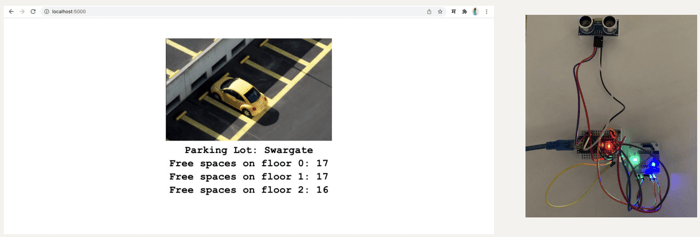

Output - Spot is full

Output - Spot is full





Below is a video demonstration:

Smart_Parking_System_Video



Conclusion:

● Automated IoT based system
● Number of free spaces displayed
● Glowing LED to indicate presence of empty spot
● Database updated every 10 seconds
● Manual assistance eliminated
● Time wastage eliminated
